Shield RMSc fodaftryk standard

Shield RMSc footprint standard

Hvilken rødpunktsigter vil du kunne montere på ,mount med RMSc eller Shield RMSc fodaftryk? Vil du kunne installere Sig Sauer Romeo Zero på den samme plade som Shield RMSc? Vi dækker den fulde kompatibilitet af Shield RMSc fodaftryk i denne artikel.

Fodaftrykskompatibilitet forklaret

Hvad betyder et "fodaftryk"? Udtrykket fodaftryk refererer til strukturen af stikkene og skruehullerne på basen af det optiske apparat.

Og hvad betyder det, hvis fodaftrykkene er kompatible?

Hver optisk sigte har en base til montering. Basen består af stifter på forskellige positioner og huller til skruer, der bruges til fastgørelse af sigtet til monteringerne. Hvis to sigte bruger den samme base til montering, siger vi, at de deler det samme fodaftryk.

I denne artikel viser vi, hvilke rødpunktsigte sigte der deler det samme fodaftryk.

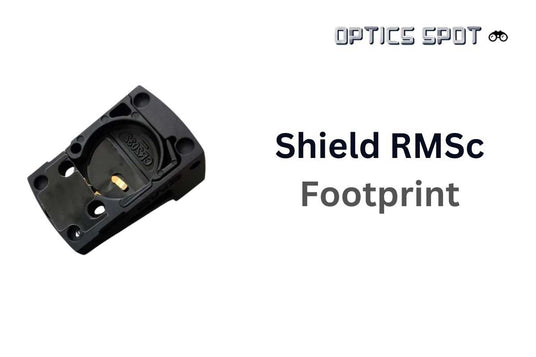

Shield RMSc fodaftryksmønster

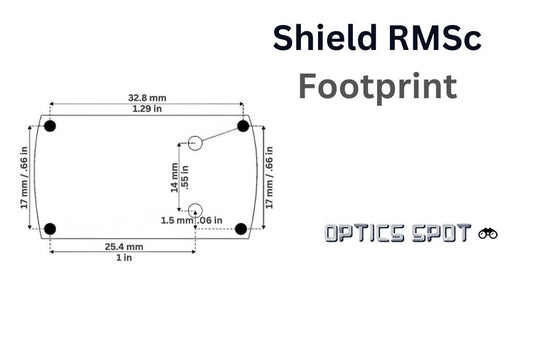

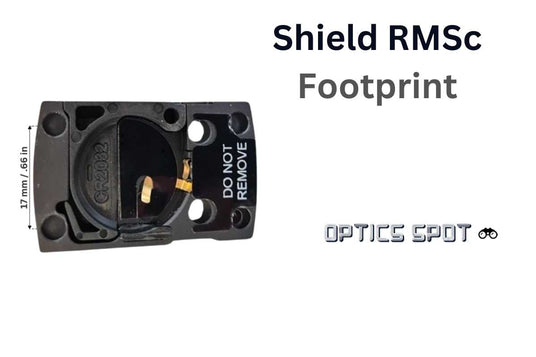

Shield RMSc fodaftryk består af fire stik i hjørnerne af sigtet og af to skruehuller i bagenden af sigtet.

De forreste såvel som de bageste stik er 17mm / 0,66 tommer fra hinanden. Afstanden fra de bageste stik til de forreste stik er 32,8mm / 1,29 tommer. Positionen af disse fire stik svarer til positionen af stifterne, der er på en monteringsflade for denne standard.

Skruehullerne er placeret i den bageste del af det optiske apparat. Disse fungerer til fastgørelse af sigtet til monteringerne. Disse to skruehuller er 14mm / 0,55 tommer fra hinanden.

Skruerne, der skal bruges til disse skruehuller, er altid inkluderet i pakken med sigtet.

Kompatible rødpunktsigter

RMSc fodaftryk deles af mange andre producenter på markedet.

Nedenfor kan du finde en komplet liste over rødpunktsigte sigte der vil fungere med Shield RMSc fodaftryk.

Shield RMSc standard

Rødpunktsigter med Shield RMSc fodaftryk

Se alle

Sådan monteres rødpunktsigte med Shield RMSc fodaftryk

Det afhænger af, hvilken enhed du vil montere den på.

Andre fodaftryksstandarder

Der er mange forskellige baser for rødpunktsigte sigte, men de andre mest almindelige er følgende:
