Trijicon RMR fodaftryk standard

Trijicon RMR footprint standard

Hvilken rødpunktsigter vil arbejde med Trijicon-beslaget? Vil du være i stand til at installere Holosun 507C på den samme plade som Trijicon RMR rødpunktsigte sigte? Vi dækker den fulde kompatibilitet af fodaftrykket i denne artikel.

Fodaftryk kompatibilitet forklaret

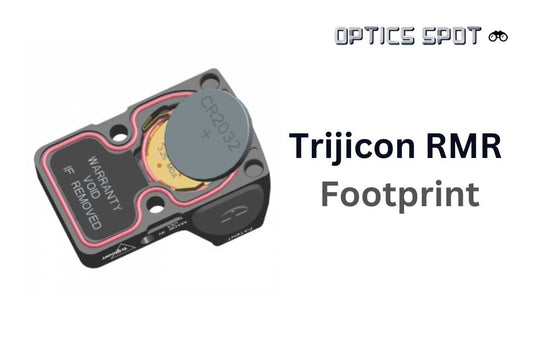

Hvad betyder et “fodaftryk”? Udtrykket fodaftryk refererer til strukturen af stikkene og skruehullerne på basen af den optiske enhed.

Og hvad betyder det, hvis fodaftrykkene er kompatible? Hver optisk sigte har en base til montering. Basen består af stifter på forskellige positioner og huller til skruer, der bruges til fastgørelse af sigten til beslaget.

Hvis to sigte bruger den samme base til montering, siger vi, at de deler det samme fodaftryk. I denne artikel viser vi, hvilke rødpunktsigter der deler det samme fodaftryk.

Trijicon RMR fodaftryk mønster

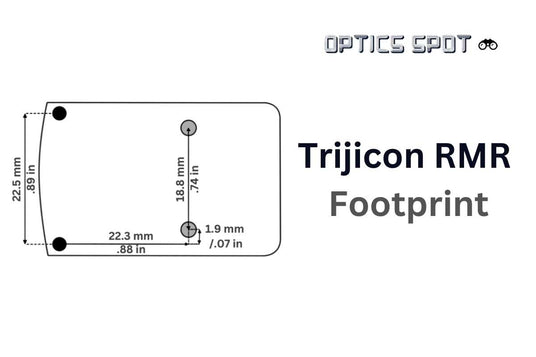

RMR fodaftryk består af to sokler foran og to skruehuller i midten af sigtet.

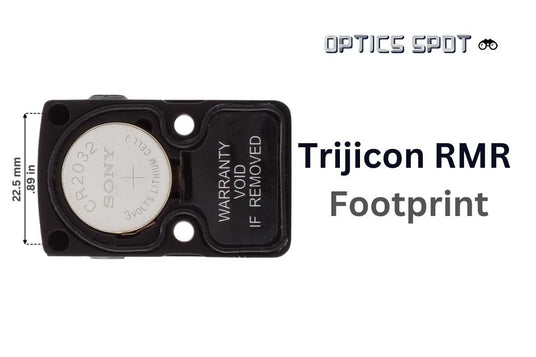

De forreste sokler er 22,5mm / 0,89 tommer fra hinanden, hver placeret i hjørnet af sigtets front. Positionen af disse to sokler svarer til positionen af stifter, der er på en monteringsflade af enhver montering til denne standard.

Skruehullerne er placeret cirka i midten af det optiske apparat. Disse fungerer til fastgørelse af sigtet til monteringen. Disse to skruehuller er 18,8mm / 0,74 tommer fra hinanden.

Skruerne, der skal bruges til disse skruehuller, er altid inkluderet i pakken med sigtet.

Kompatibel rødpunktsigter

RMR er et af de mest almindelige fodaftryk på markedet.

Nedenfor kan du finde en komplet liste over sigte, der vil fungere med Trijicon fodaftryk.

Trijicon RMR standard

Rødpunktsigter med Trijicon RMR fodaftryk

Se alle

Sådan monteres rødpunktsigte med Trijicon RMR fodaftryk

Det afhænger af, hvilket apparat du vil montere det på.

  • Vil du installere det på en picatinny montering? Altså en pistol udstyret med picatinny rail? Så skal du kigge efter picatinny montering med RMR fodaftryk.
  • Eller vil du montere det på en pistol? Og vil pistolen være optics ready (med pistol slide cut for rødpunktsigte). Så skal du kigge efter rødpunkt montage med RMR fodaftryk.
  • Eller vil det være en standardpistol uden sådan et cut? Så skal du kigge efter optisk plade med RMR fodaftryk.

Andre fodaftryk standarder

Der er mange forskellige baser for rødpunktsigte sigte, men de andre mest almindelige er følgende:
