Trijicon RMR footprint standard

15. februar 2025

Hvilke rødpunktsigter fungerer med Trijicon-montagen? Vil du kunne installere Holosun 507C på den samme plade som Trijicon RMR rødpunktsigte? Vi dækker footprintets fulde kompatibilitet i denne artikel.

Footprint-kompatibilitet forklaret

Hvad betyder et "footprint"? Begrebet footprint henviser til strukturen af soklerne og skruehullerne på bunden af den optiske enhed.

Og hvad betyder det, hvis footprintene er kompatible? Hvert optisk sigte har en base til montering. Basen består af tappe i forskellige positioner og huller til skruer, der bruges til fastgørelse af sigtet til montagen.

Hvis to sigter bruger den samme base til montering, siger vi, at de deler det samme footprint. I denne artikel viser vi, hvilke rødpunktsigter der deler det samme footprint.

Trijicon RMR footprint-mønster

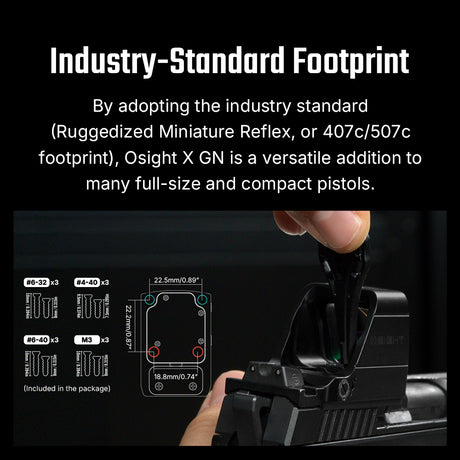

RMR footprint består af to forreste sokler og to skruehuller i midten af sigtet.

De forreste sokler er 22,5mm / 0.89 inches fra hinanden, hver placeret i hjørnet foran på sigtet. Placeringen af disse to sokler svarer til placeringen af de tappe, der er på monteringsfladen på enhver montage til denne standard.

Skruehullerne er placeret cirka i midten af den optiske enhed. De bruges til fastgørelse af sigtet til montagen. Disse to skruehuller er 18,8mm / 0.74 inches fra hinanden.

Skruerne, der skal bruges til disse skruehuller, er altid inkluderet i pakken med sigtet.

Kompatible rødpunktsigter

RMR er et af de mest almindelige footprints på markedet.

Nedenfor finder du en komplet liste over sigter, der fungerer med Trijicon footprint.

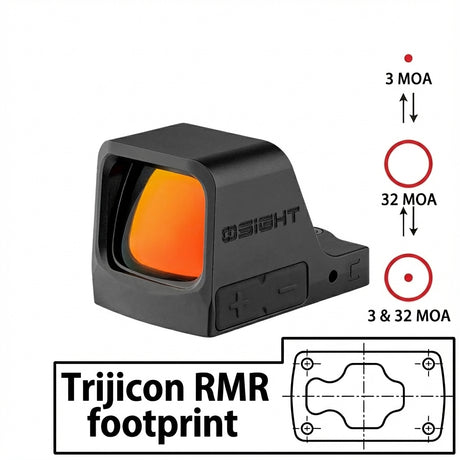

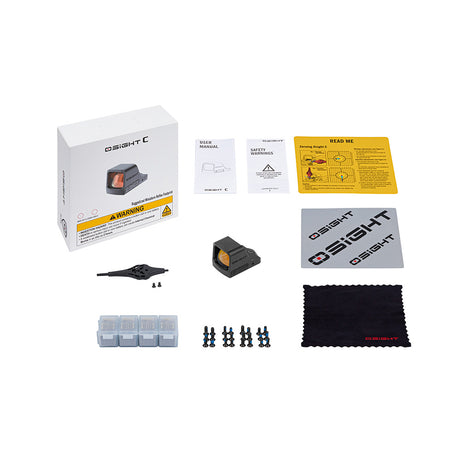

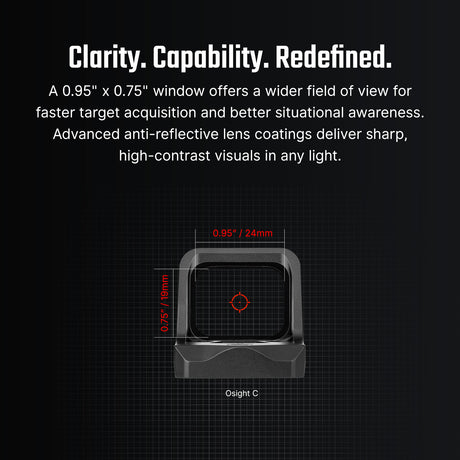

Osight C [rød]

(11)

1.793,00 DKK

På lager

Se detaljer

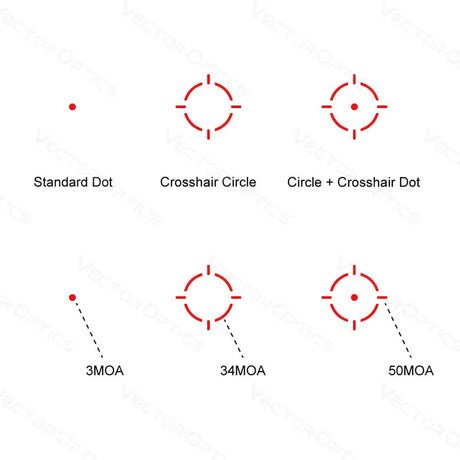

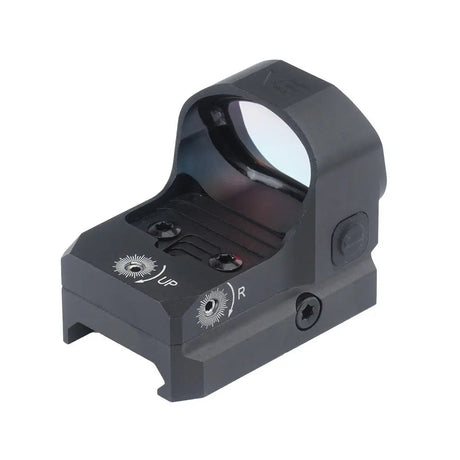

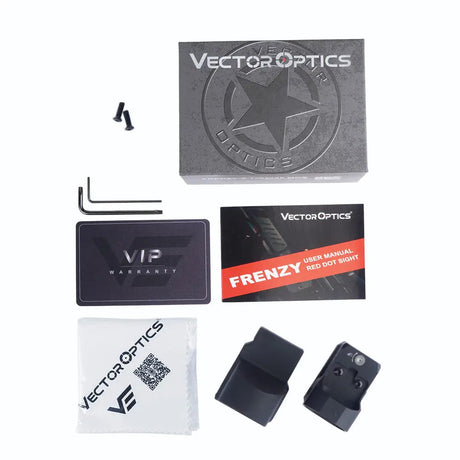

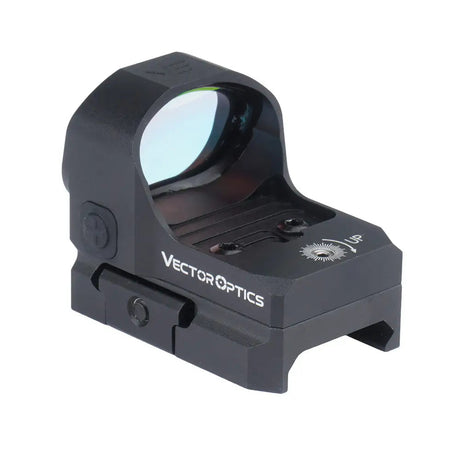

Vector Optics Frenzy 1x22x26 MOS MRS rødpunktsigte

(8)

1.273,00 DKK

På lager

Se detaljer

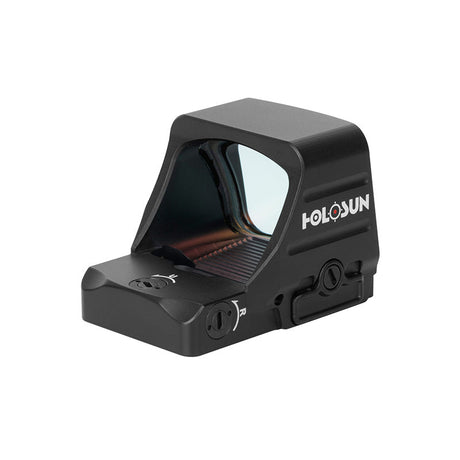

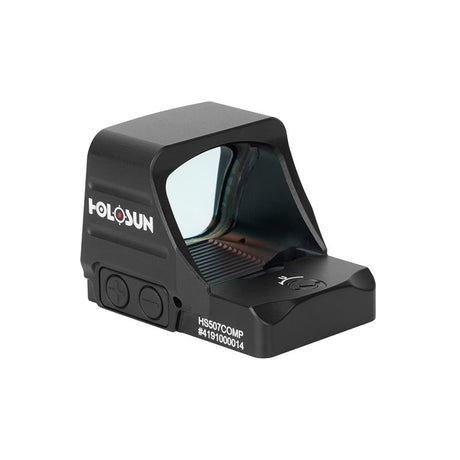

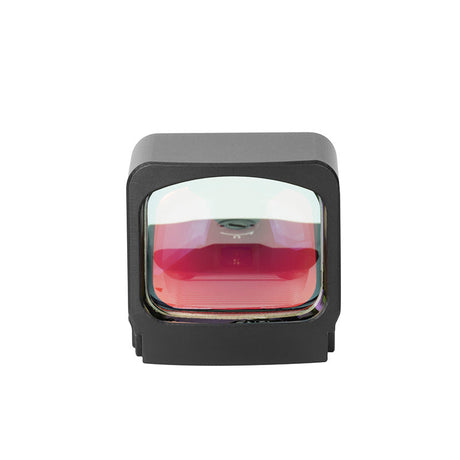

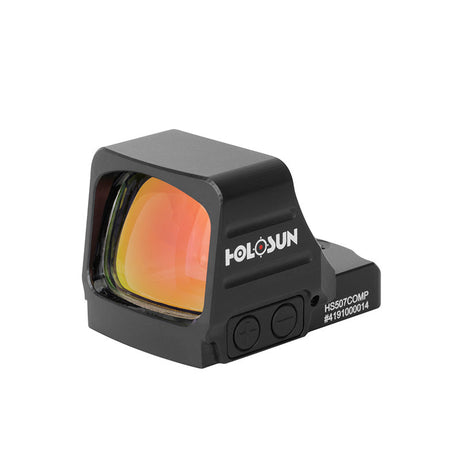

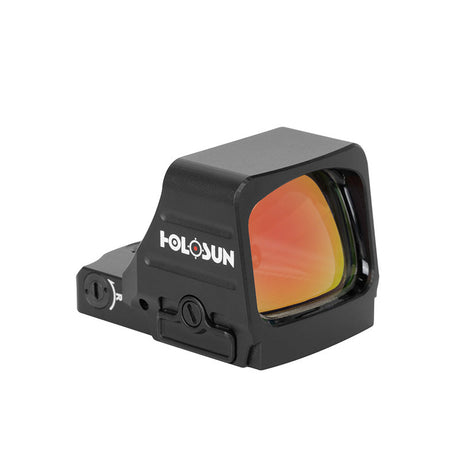

Holosun 507 Comp [rød]

(4)

3.651,00 DKK

På lager

Se detaljer

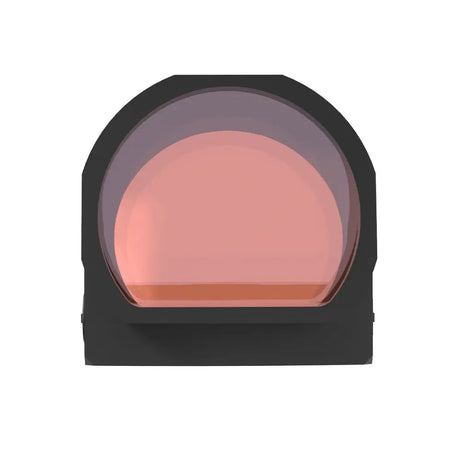

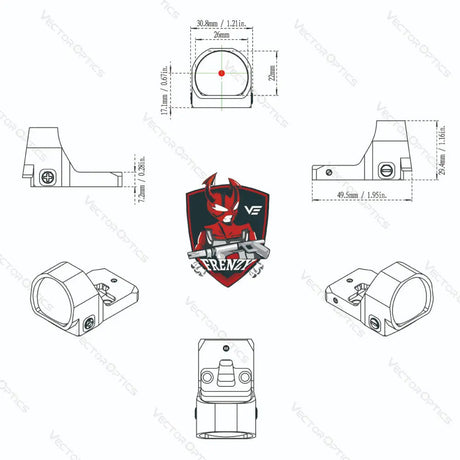

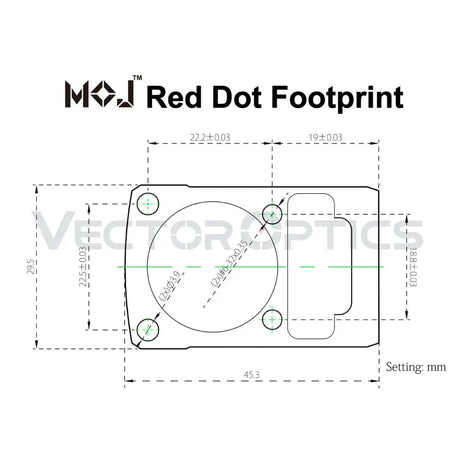

Vector Optics Frenzy 1x22x26 MOS rødpunktsigte

(4)

1.353,00 DKK

På lager

Se detaljer

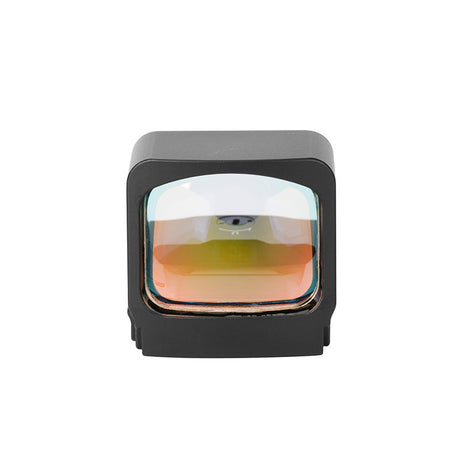

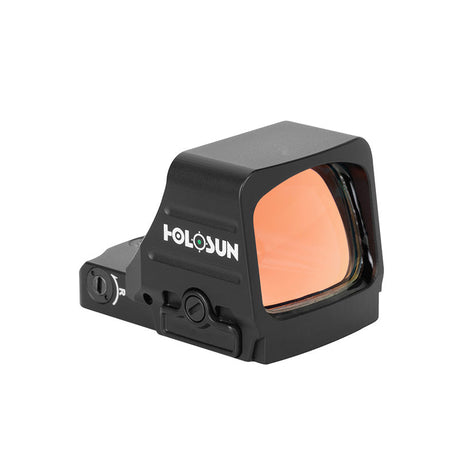

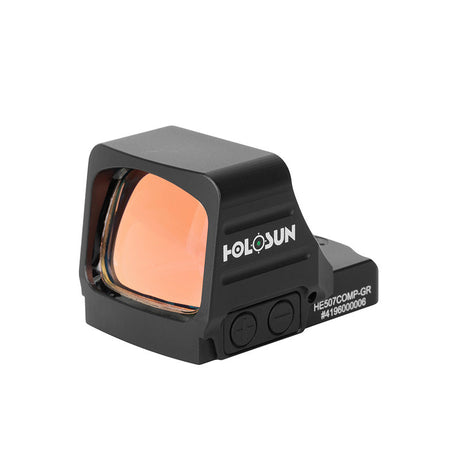

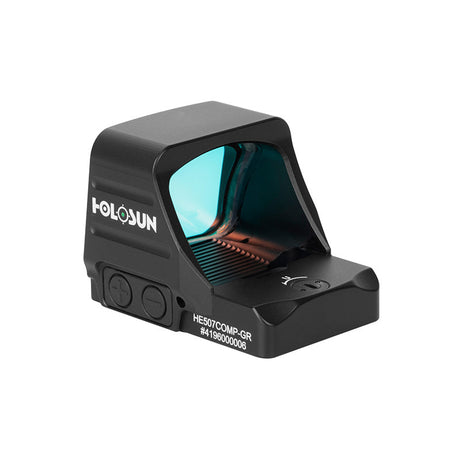

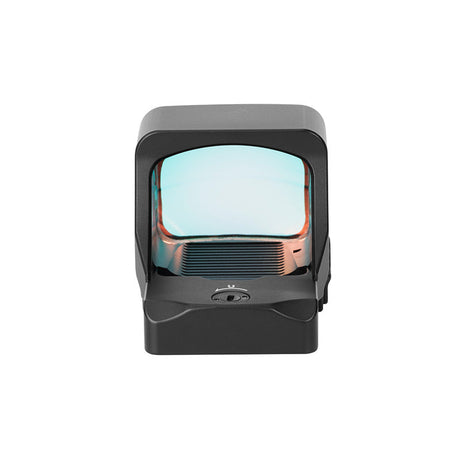

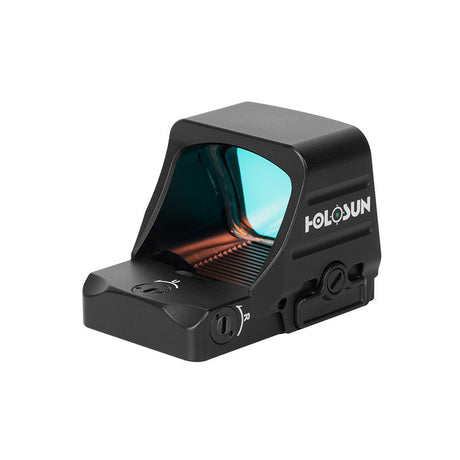

Holosun 507 Comp [grøn]

(2)

4.163,00 DKK

På lager

Se detaljer

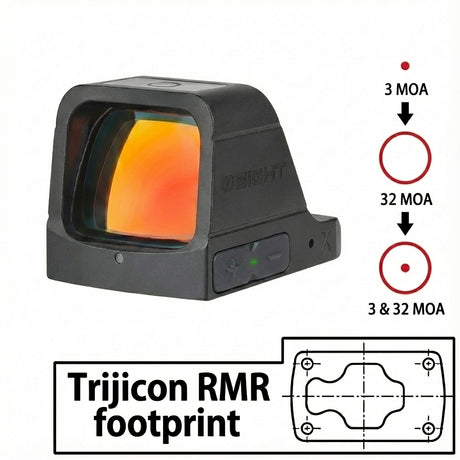

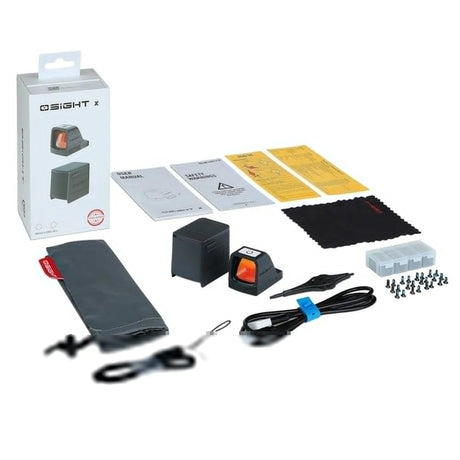

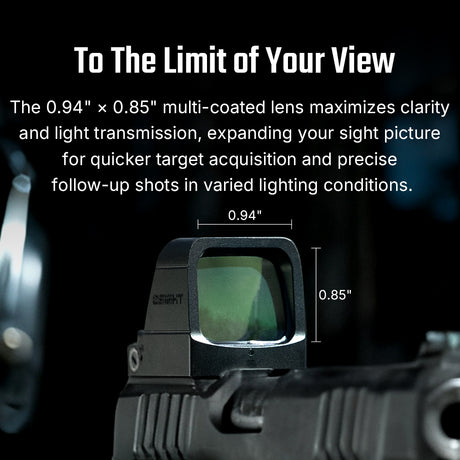

Osight X [rød]

2.242,00 DKK

På lager

Se detaljer
Holosun 507C X2 [rød]

(3)

3.299,00 DKK

På lager

Se detaljer
Vector Optics Frenzy-X 1x19x28 GenII

(1)

1.433,00 DKK

På lager

Se detaljer

Sådan monterer du rødpunktsigte med Trijicon RMR footprint

Det afhænger af, hvilken enhed du vil montere det på.

Vil du installere det på en picatinny-montage? Dvs. et våben udstyret med Picatinny skinne? Så skal du kigge efter picatinny-montage med RMR footprint.
Eller vil du montere det på en pistol? Og vil pistolen være optics ready (med pistolslæde fræset til rødpunktsigte). Så skal du kigge efter rødpunktsmontage med RMR footprint.
Eller er det en standardpistol uden sådan en udfræsning? Så skal du kigge efter adapterplade med RMR footprint.

Andre footprint-standarder

Der findes mange forskellige baser til rødpunktsigter, men de andre mest almindelige er følgende:
